◆Various specifications and types of quick screen changer specifications: φ60-350mm.

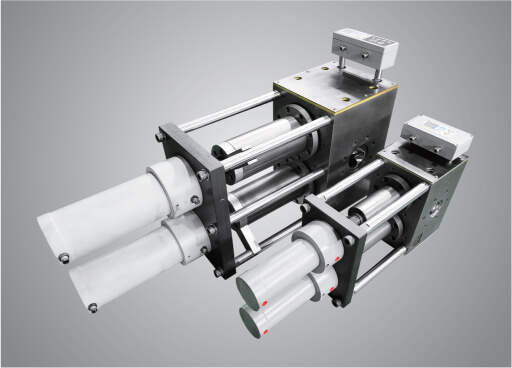

◆Models are: single-plate double-station fast screen changer, double-plate four-station fast screen changer , single-column double-station fast screen changer, and double-column four-station fast screen changer.
◆It is suitable for high transparency, high viscosity, easy to crack, high molecular weight plastic filter device characteristics.
◆Modular anti-leakage steel sleeves can be disassembled and assembled by themselves without additional processing.
◆The flow channel does not retain plastic, and the residence time is short.
◆It is possible to make on-site anti-leakage adjustments for the metal expansion coefficient due to processing temperature.
◆The double-station quick screen change time is less than 2s, and the filtering area is from φ30-q350.
◆High wear resistance, high pressure resistance, high precision fiter design, improve the effective area and filter quality.
◆Under the conditions of pressure 25 -30Mpa and temperature 300*C, the performance will not be affected.
◆The safety shield design improves the safety factor of operation.
◆The filter hole steel mold can be removed separately to ensure that the plastic in the retained hole is cleaned, and the clean filter hole steel mold can be quickly updated to ensure that the plastic after the filter is the cleanest.
◆There is a pre-heating device, which prevents the plastic from cooling down and slows down the flow when changing the screen.
